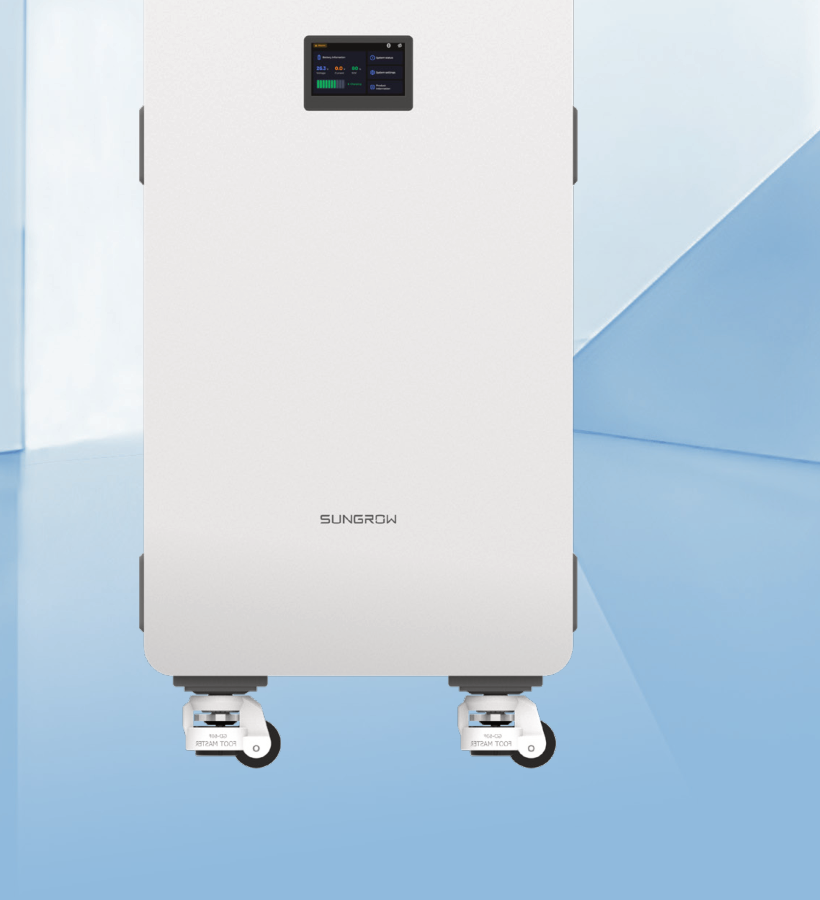

16 kWh LiFePO4 Battery — Scalable to 320 kWh
16 kWh floor-stand LiFePO4 battery module with industry-leading 8,000-cycle warranty at 90% DOD. LCD touchscreen, CAN/RS485 communications, and parallel up to 20 units (320 kWh total) for whole-home backup and SME self-consumption applications.
Four datasheet-backed advantages for residential / light c&i battery deployments.
Lithium iron phosphate cells deliver superior thermal stability, long cycle life and intrinsic safety versus NMC alternatives. 8,000 @ 25 °C, 90% DOD, 70% SOH.
Plug-and-play CAN-protocol pairing with MG5RL · MG6RL · MG8RL · MG10RL hybrid inverters. 30+ third-party compatibility list also supported via official Sungrow battery compatibility matrix.
Parallel connection of 20+ units enables system scaling without controller upgrade. 51.2 V (range 44.8–57.6 V) bus voltage maintained across the parallel string.
Operating temperature −20 °C to +55 °C on discharge, 0 °C to +55 °C on charge. Natural convection — no fans, no maintenance.
All parameters sourced from Sungrow's official MBL160 datasheet.
| Cell Chemistry | LiFePO4 (LFP) |
|---|---|
| Nominal Energy | 16.0 kWh |
| Usable Energy | 16.0 kWh (100% DOD usable per spec) |
| Battery Voltage Range | 51.2 V (range 44.8–57.6 V) |
| Nominal Charge / Discharge Current | 157 A nominal |
| Max. Current | 200 A max / 220 A peak (3s) |
| Cycle Life | 8,000 @ 25 °C, 90% DOD, 70% SOH |
| Compatible Inverters | MG5RL · MG6RL · MG8RL · MG10RL |
| Max. Parallel | 20 units (up to 320 kWh total) |
| Protection Rating | IP20 |
| Mounting Method | Floor-mounted |
| Installation Location | Indoor only |
| Operating Temp (Charge) | 0 °C to +55 °C |
| Operating Temp (Discharge) | −20 °C to +55 °C |
| Cooling Method | Natural convection |
| Weight | 123 kg |
| Dimensions (W × H × D) | 432 × 760 × 243 mm |
| Communication | CAN / RS485 + LCD touchscreen |
| Certifications | CE · IEC 62619 · UN 38.3 · MSDS · ROHS · REACH |
| Warranty | 10-year quality / 8,000 cycle warranty |
Optimized for residential / light c&i battery deployments.
16 kWh single-cabinet for villas with high daily consumption — touchscreen monitoring and floor-mount indoor installation.
Scalable up to 320 kWh (20 units in parallel) for apartment complexes and shared-home configurations.
Convenience stores, cafés and small offices needing reliable backup with grid-arbitrage capability.
Buffer storage for slow-charge depot setups, smoothing grid demand peaks and time-shifting solar generation.
Datasheet-driven answers for procurement teams and BESS designers.

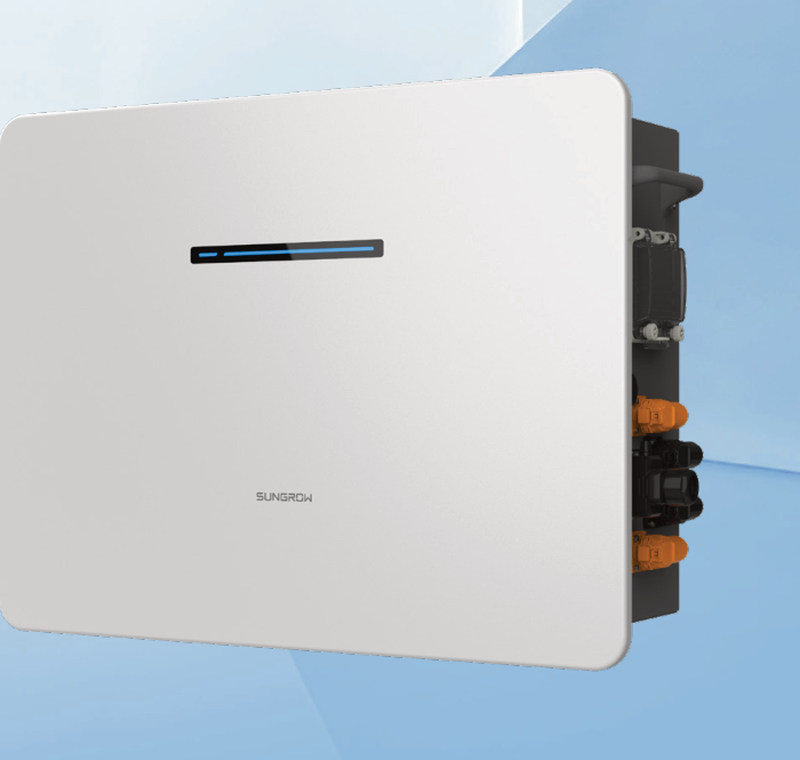

Other models worth considering for your project.
Send your project size. We respond with stock, lead time and FOB Shanghai pricing within 24 hours.
